Features
BMW Scanner V1.36 is a new version of BMW scanner intended to work with BMW 3, 5, 7 series and X3, X5 SUV cars
The new version of the scanner for BMW E38/E39/E46/E53 differs from the previous version:
1) The high-grade program module for work with ZKE (Body Control Module) is added
2) Functions of adaptation second-hand blocks SRS MRS2-MRS4 are added
3) Support of the diagnostic report of blocks DME of series ME7 is added
4) Functions of installation of indications odometer (miles/km) and language of messages BK (GE/EN/FR/IT) are added
5) The base of support on updating run in IKE and LCM is added

Main Functions
[FIND UNITS]-scanning installed units with reading identification data and malfunction codes
[CLEAR ERRORS]-reset fault codes in all of found units
[ERRORS DETAILS]-detail info about malfunction codes
[READ MEMORY]-reading unit software memory
[READ EEPROM]-reading EEPROM in units: IKE, LCM, ZKE, SRS, LEW, A/C, VID, BMBT, STH, AIC...
[WRITE EEPROM]-writing EEPROM in same units
[ERRORS]-reading detail info and reset malfunction codes in selected unit
[RESET UNIT]-unit software reset
[WRITE FGSTNR]-identification number writing
[WRITE ADFG]-more identification data writing
[ODOMETER CORRECT]-writing new mileage value to IKE & LCM units
[SAVED ODOMETER]-reading more detail info about mileage from IKE & EGS units
[SERVICE RESET]-IKE service reset
[CHANGE LANGUAGE]-changing language of main computer messages GE/EN/FR/IT
[FACTORY DEFAULTS]-factory defaults reset of IKE & LCM (for cars till 1999 year)
[COPY CODING]-base coding copying IKE to EWS or EWS to IKE units
[TV FUNCTIONS]-"video on when driving" setting in VID unit
[READ KEY]-reading ignition keys data from EWS unit
[ADAPTATION LEW]-steering wheel sensor (LEW) adaptation
[REGISTER HANDSET]-new handset register to TEL (BIT2) unit

BC / MID : BOARD COMPUTER
DWA : ALARM
IC : INSTRUMENT
LCM / CCM : LIGHT & CHECK CONTROL MODULES
ZKE / ZVM : BODY
EGS : GEARBOX
EWS : IMMOBILIZE
CVM : SOFT TOP
SIM - CGM : SAFETY GATEWAY
CAS : CAR ACCESS
CGM : CENTRAL GATEWAY
SIM : SAFETY & INFORMATION
SBSL : LEFT SATELLITE
SBSR : RIGHT SATELLITE
SFZ : VEHICLE CENTER SATELLITE
RLS : RAIN & LIGHT SENSOR
PDC : PARK DISTANCE

Package includes:
- interface with integrated OBD2 connector
- BMW 20 pin connection cable with obd2 female

Features

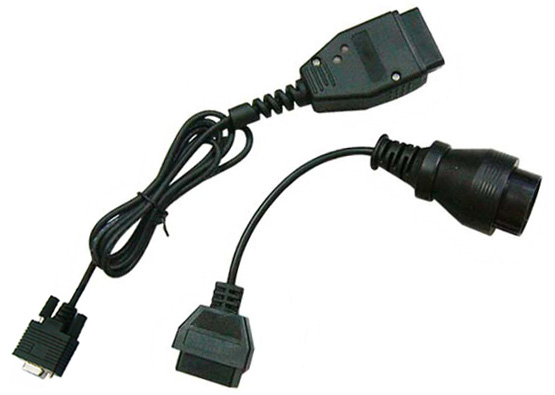

MCU controlled Interface for Mercedes Benz Carsoft 7.4 which is compatible with the original interface.
Interface contains Multiplexer to connect to all diagnosticable Modules fully automatically.
