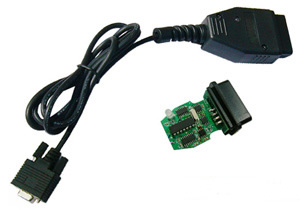

ELM323 Interface (with MCU)

Heavy & robust casing for rough service use
- Connects to PC via RS232
- Working for ISO9141/KWP2000 protocol over ELM323 Interpreter MCU
- Cable is based on certified ISO9141 Bus Transceivers and RS232 level shifters
- Bi-colour led for each K-line which shows the current logic status
- Powered from car battery over OBD2 connector

Package includes:
- Interface(with MCU) with integrated OBD2 connector
we do not provide the software !!!

Reference
The ELM323 OBDII Interface, allows you to talk to your ISO 9141-2 or ISO 14230-4 standard OBDII equipped vehicle using an RS232 serial connection. It transparently converts between a 10.4KHz ISO data stream and standard ASCII characters, allowing trouble codes and operating parameters to be easily retrieved without the need for special software. No knowledge of data formatting, error checking, bus initiation etc. is needed either, as the ELM323 handles all of it for you. The present version of the ELM323 (v2.0) provides several programmable features that the previous versions did not offer. It now allows programmable header bytes, adjustable timeouts, the ability to report in the packed data mode, and offers a special monitoring mode as well. This is in addition to all of the capabilities that the v1.x ICs offered - the full seven byte command structure, two line (K and L) initiation.

Function
Functions Software for ELM32X-based interfaces:
Free software:
Scantool.net
GM Mode 22 Scan Tool by Terry
OBD Gauge for PalmOS and Pocket PC by Dana Peters
OBD Logger by Jonathan Senkerik
OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)
obd2crazy.com
OBD2 Scantool by Ivan Andrewjeski
OBDII for ELM322 by David Huffman
pyOBD by Donour Sizemore for MacOSX and Linux
RDDTC by Pete Calinski
Real Scan by Brent Harris
ScanTest for Pocket PC by Ivan Ganev aka a-ser
wOBD by WDT
Non-free software:
Digimoto
ElmOScan NEW! by Softator (available in Finnish).
PCMSCAN
ProScan

Features

Latest update: VW T5/LT bus separate immo box (Temic) ID:VWZ4Z0..

- VDO SEED-KEY protected dashes supported !
(This means: Passat B6, Bora/Jetta to 2004 year, Golf 4 to 2003 year,Skoda Octavia/Fabia to 2004 year , some Seat dashes up to 2002 year ect...)
- VAG Kombiinstrument / Immo box eeprom programmer...by OBD connector!
- Direct USB to OBD Connection! All hardware inside OBD connector!
- Works on any computer that has USB port! No more virtual COM Ports!
- This is a TRUE USB connection! Windows XP compatible software!
- Audi A4,A6,A8 separate immo box 1994-1999 read PIN code,and read/write eeprom!
- Audi A3,A4,A6,TT, New Beetle Magnetti Marelli M73 (1998-2002 year) read PIN code / change mileage!
- New Beetle Magnetti Marelli M73 (2001 to 2005 year) read PIN code
- Almost all VDO dashes for VW/Seat/Skoda up to year 2004 read/write eeprom!
- Almost all VDO dashes for Audi up to year 2001 read/write eeprom!
- Almost all MotoMeter dashes for VW/Seat up to year 2001 read/write eeprom!
- Automatic functions: Repair dashboard, Read PIN code !
- All this by using car OBD connector! Without disassembly dash or immo box from car!

Package Contains

VAG Tacho USB compatible Interface
